Advanced CAN system makes the interaction easy
Powerful dust removal, dust suppression and dust absorption function can easily clean up the dust and garbage debris one-time
Equipped with an intelligent IOT system, it can help comprehensively monitor the sweeper’s status at any time, optimize the scheduling scheme and power consumption, effectively help carbon neutralization and carbon peak, and reduce the comprehensive cost of users.
Enclosed and high position cab, with a wide view, can operate in various weather conditions, and meet more complex cleaning scenes. With safety and humanized design, TS1900 is not afraid of any climate, any scene
Ride-on sweeper of open design, equipped automatic dustbin and automatic cleaning andfiltering system; Suitable for heavy industrial environment with fine dust and large garbagefragments, such as airport stations, parks, roads, residential communities, warehouses, etc
Cleaning Width(mm):
1900Machine Dimensions(mm):
2275*1270*2200Working Capacities(㎡/h):
19000Solution Tank(L):
230Gradient(%):
25/21Large cleaning width, fast working speed and maximum working efficiency of 19,000㎡/H

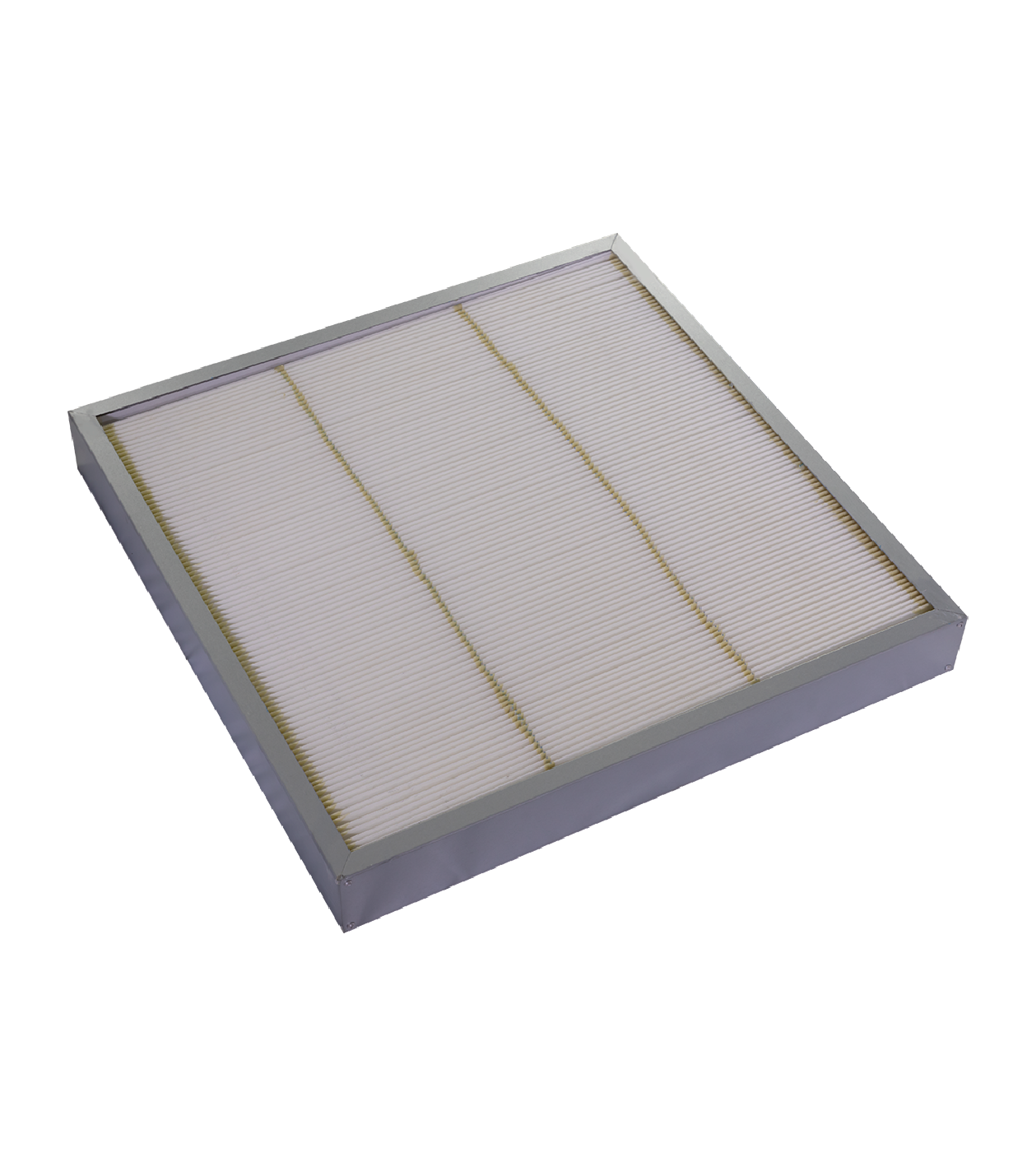

Spray dust control, double high performance brushless vacuum suction motors, 6 ㎡ high-efficiency filter: three functions sweep the dust away.

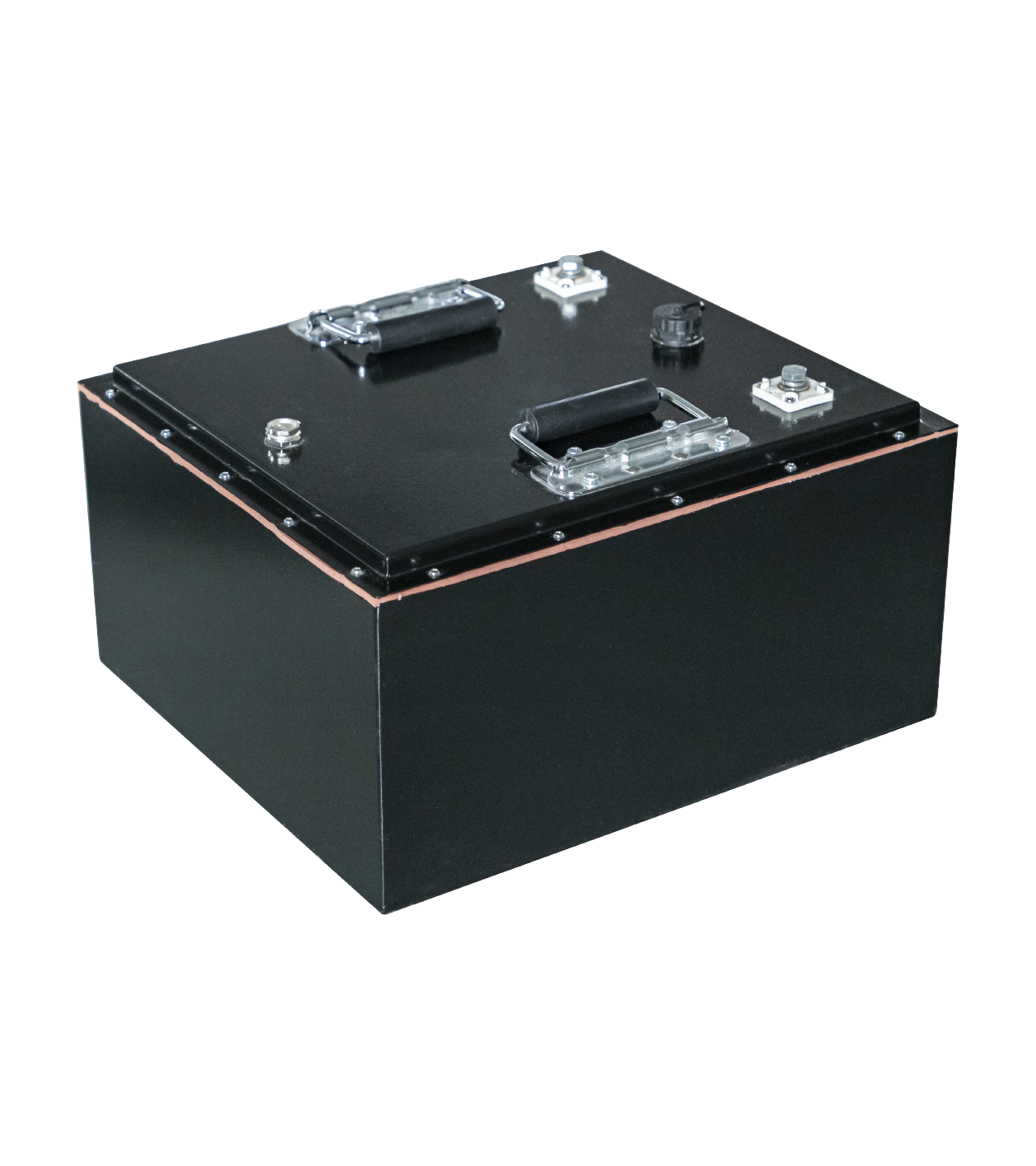

High efficiency battery with long battery life, large capacity solution tank and dustbin, provide guarantee for continuous operation.
 |

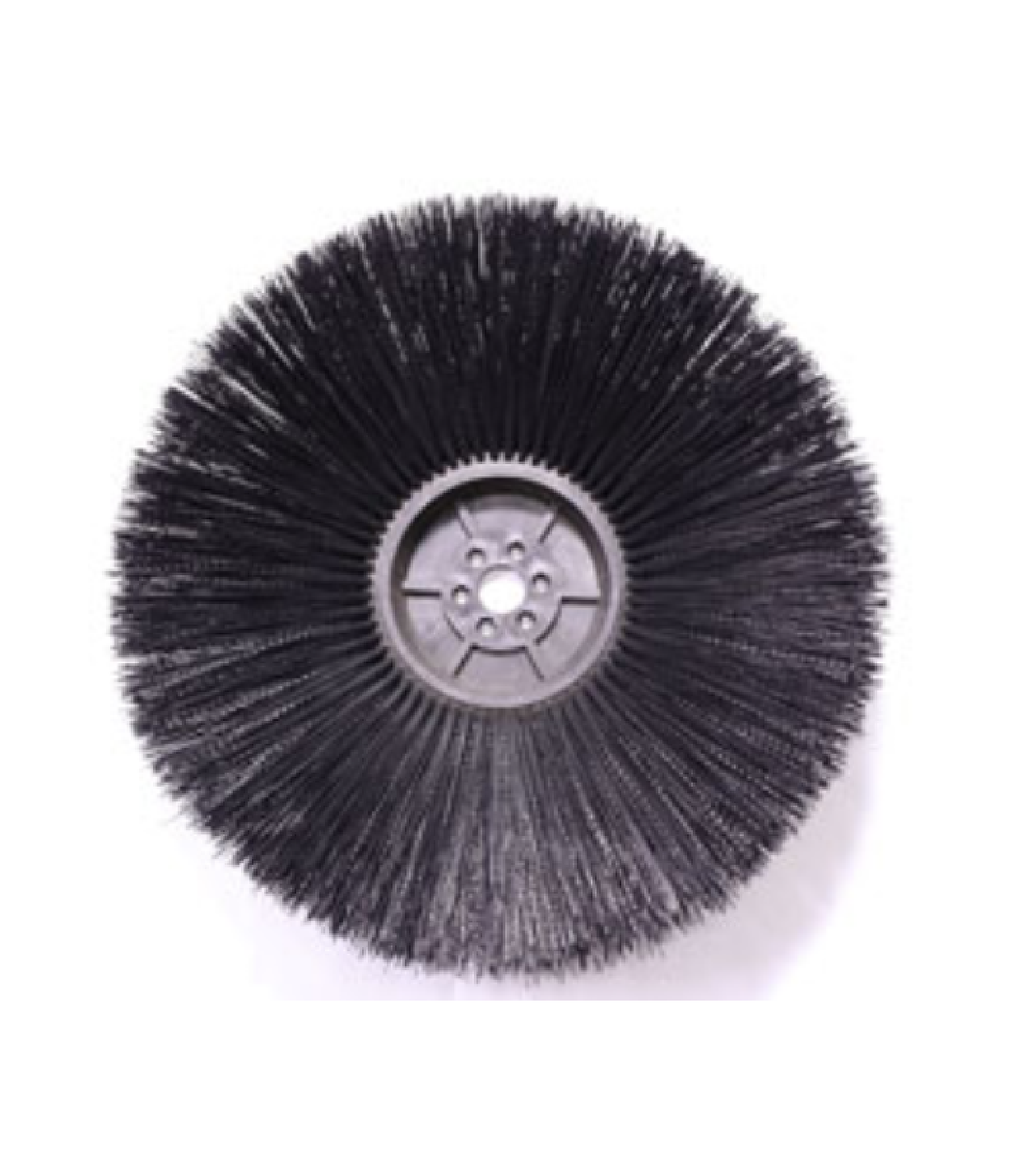

01Side brushTilt side brush can gather garbage and avoid throwing out,Max climbing degree reaches 25° due to strong rear-drive motor. |
02Operation and SafetyNormal, Steep slope, Snow mode can improve the safety of driving.The brushes gradually increase the speed when the machine is running which protect the luster of the ground and reduce the wear of the brushes |
|
|
|
03Humanization DesignWheels are equipped with shock absorption system, which can easily pass through the uneven road. Driving is more comfortable.Design of storage space and USB interface. |

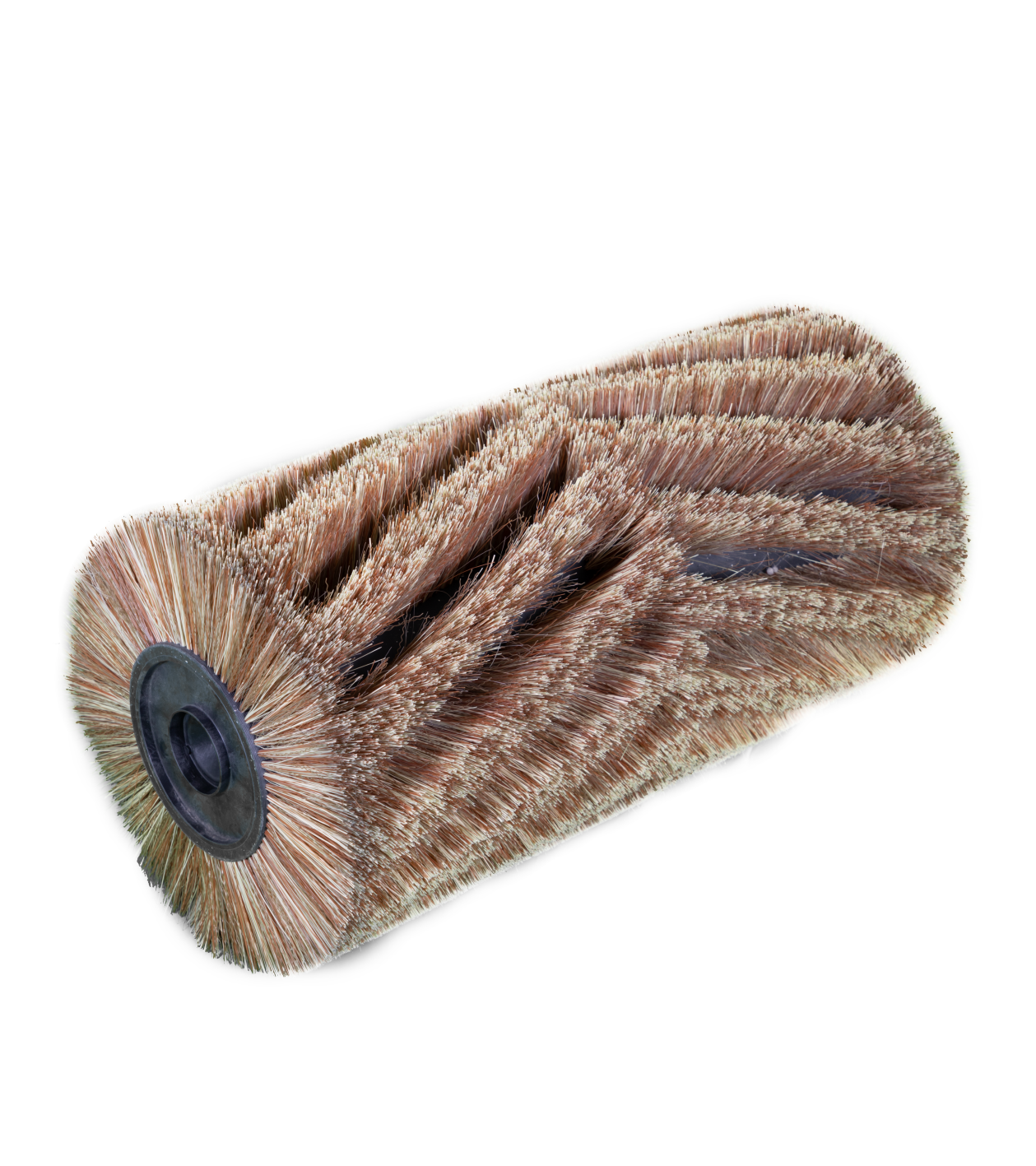

04Powerful FunctionAutomatic dumping dustbin which can load 200KG,Waterproof and dustproof 6㎡ high-efficiency filter,Adjustable rolling brush with constant ground pressure,More powerful suction ability with double vacuum motors |
|
| TS1900 | TS1900S | TS1900H | TS1900HS | TS1900AS | |
| Solution tank | 230L | ||||
| Cab | Open-top | Open-top | Semi-enclosed | Semi-enclosed | Fully enclosed |
| Working width | 1900mm | ||||
| Max forward speed | 10Km/h | ||||
| Max capacities | 19000㎡/h | ||||
| Side brush size | φ500mm×4 | ||||
| Roller brush size | φ430×L800mm | ||||
| Filter area | 6㎡ | ||||
| Turning radius | 1.9m | ||||
| Dustbin type | Manual garbage dump | Automatic garbage dump | Manual garbage dump | Automatic garbage dump | Automatic garbage dump |
| Dustbin volume | 160L | ||||
| Driving type | Rear engine drive | ||||
| Driving mode | Normal mode Steep slope mode Snow mode | ||||
| Drive motor | 48V/2200W | ||||
| Brush motor | 48V/140W×4 | ||||
| Roller brush motor | 48V/1500W | ||||
| Vacuum motor | 48V/218W×2 | ||||
| Windshield wiper motor | / | / | / | / | 24V/50W |
| Display size | 5” | ||||
| System upgrading | ● | ||||
| Max gradient | 25% | 25% | 21% | 21% | 21% |
| Rear brake | Drum brake | ||||
| Cushioning | Double front wheels shock absorber | ||||
| Parking brake | Electromagnetic brake | ||||
| Reversing radar | ● | ||||
| Backup camera | ● | ||||
| Working voltage | DC48V | ||||
| Batteries weight | 33Kg×8 | ||||
| Lithium battery | ○ | ||||
| Dimensions | 2300×1900×1800mm | 2300×1900×1800mm | 2300×1900×2400mm | 2300×1900×2400mm | 2300×1900×2400mm |
| Net weight | 930Kg | 980Kg | 1110Kg | 1150Kg | 1250Kg |
| (excluding batteries) | |||||
| Seat adjustment mode | Forward and backward adjustment Backrest angle adjustment | ||||
| Fan | / | / | ● | ● | ● |
| Air conditioner | / | / | / | / | ○ |
| Glass | / | / | Acrylic glass | Acrylic glass | Toughened glass |
| Water blaster | ○ | ||||
| Steering whee | High-density polyester fiber | ||||
| Remark： ●Standard ○ Optional / NA | |||||
It is suitable for cleaning floors types of cement, resin, marble, ceramic tile and so on, and can be widely used in areas including production workshops, airports, bus stations, schools, supermarkets, hospitals, logistics centers etc.
