Ride-on Floor Scrubber Dryer roots floor cleaning machine T90/55R/70R

T90 Series are designed as compact ride-on floor scrubbing machines. It enables to do floor daily cleaning or maintenance tasks in small circumstances from big scenarios.

Usually, you can meet some corridor or small space in the big area place. But if you maintain the floor with TVX walk-behind floor scrubbers, it goes slowly but not necessarily with powerful ride-on ones. In this case, T90 can well match your cleaning demands on the area and floor care jobs.

Working Efficiency

2800/3500m²/h
Battery Autonomy

3.3/4.5h
Cleaning Width

560/700mm
Solution/Recovery Tank

90/100L

Battery

2*12V100Ah (55R)

2*12V120Ah (70R)
Brush Disc

21" (55R)

2*13" (70R)
Brush RPM

180RPM
Brush Disc Pressure

38/40KG

Cleaning Width(mm):
560/700
Machine Dimensions(mm):
1365*995*1040/1365*750*1190
Working Capacities(㎡/h):
2800/3500
Solution Tank(L):
90
Recovery Tank(L):
100
Brush Quantity:
1/2
Working Brush(inch):
21/13

Inquiry now Download

Scenarios

Shopping Mall
School
Airport
Factory
Parking Lot

Supermarket
Transportation
Hospital
Stadium
Warehouse&Logistics

Features

Ride-on but Flexible

· 90L high-capacity solution tank, good for large space

· Flexible control with steering wheel knob ball booster

Safety is the Priority

· The pressure-sensitive seat is designed to prevent the machine movement caused by the false triggering

· When turning or reversing, the machine decelerates automatically to protect people, objects and machine

· Active braking response, braking torque up to 6N·m

Have Fun in Driving, Have Done in Cleaning

· Strong drive motor offers a speed up to 5km/h and climbing gradient up to 12%

· 2×12V/120Ah large capacity maintenance-free batteries provide the durability of up to 4.5 hours

Specifications

T90/55R T90/70R

Cleaning Width mm 560 700

Squeegee Width mm 780 860

Working Efficiency m²/h 2800 3500

Brush Pressure KG 38 40

Brush RPM RPM 180 180

Brush Motor V/W DC24/500 DC24/400*2

Vacuum Motor V/W DC24/390 DC24/390

Traction Motor V/W DC24/300 DC24/300

Forward Speed Km/h 0-5 0-5

Solution Tank L 90 90

Recovery Tank L 100 100

Max.Gradeability % 12 12

Machine Dimension L*W*H 1365*665*1040 1365*750*1190

(Squeegee Excluded) mm

Accessories

Standard Accessories

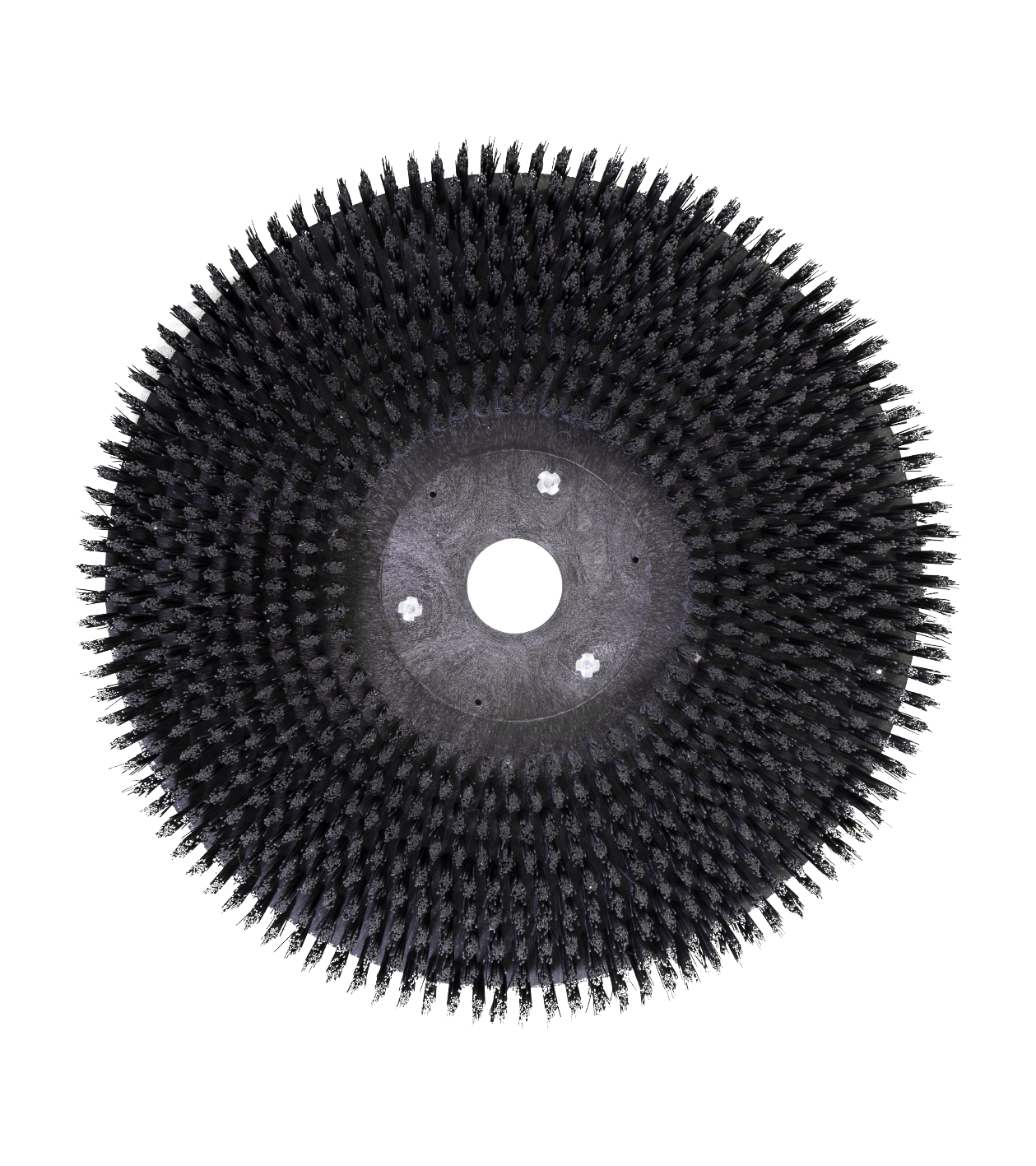

Scrubbing Brush 0.6mm
Size:

21" * 1pcs (T90/55R)

13" * 2pcs(T90/70R)

Material: 0.6mm(⌀) PP

Application: daily cleaning,

maintenance on most hard floors

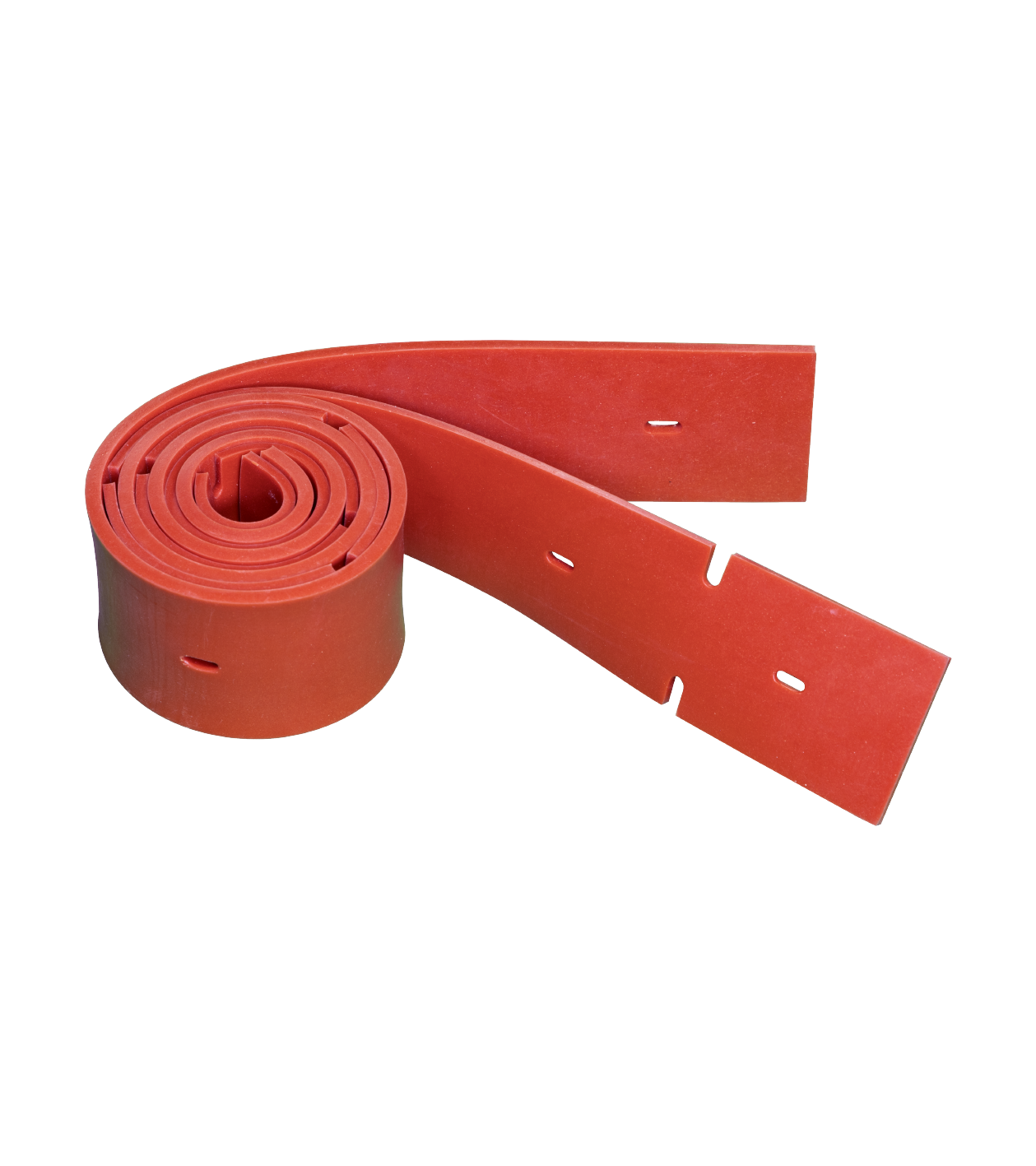

Squeegee Rubber Strip - Red
Material: 100% Natural Rubber

Application: hard floor cleaning and

maintenance

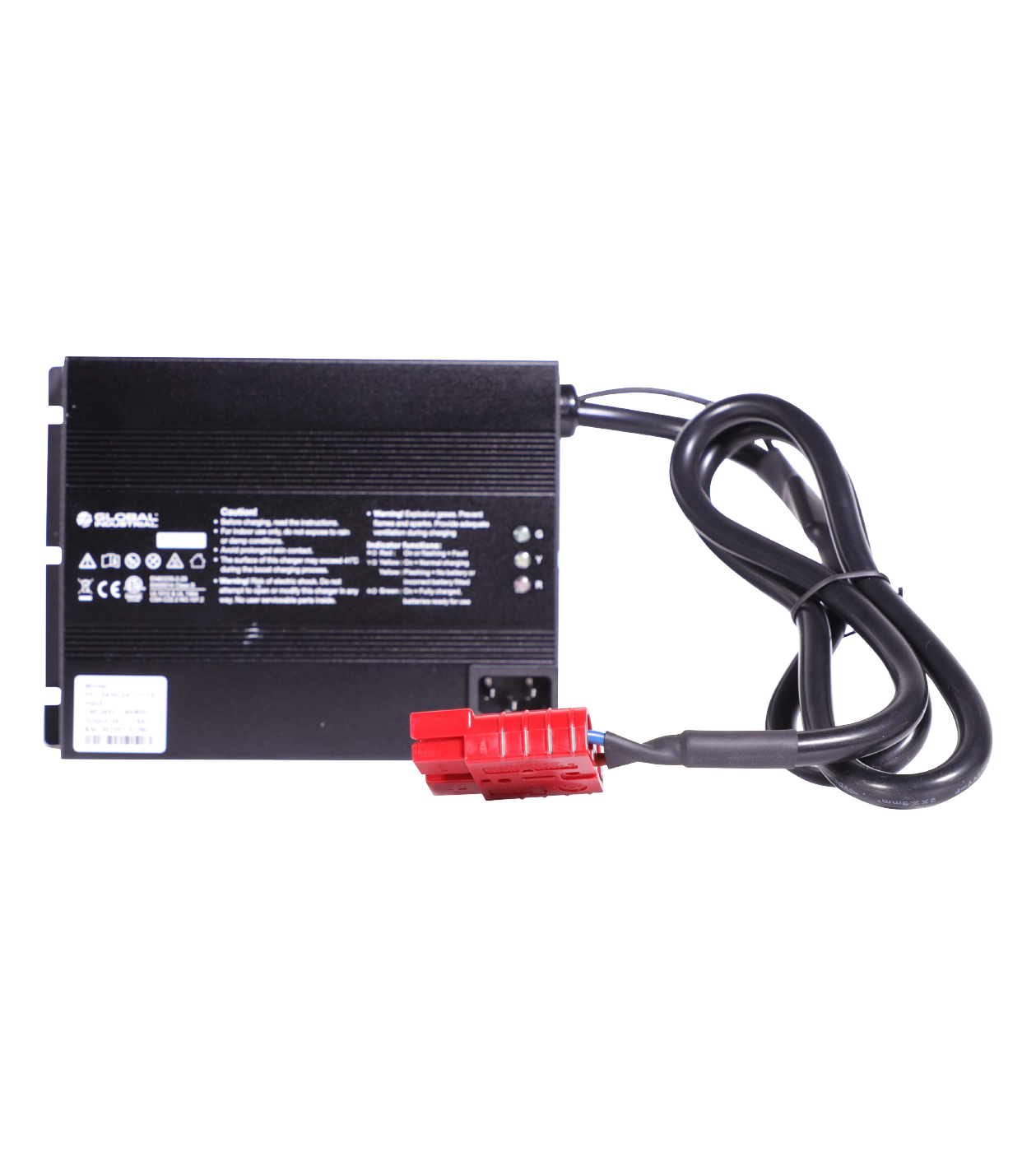

Battery Charger
Capacity：24V/15A

Fit for: T90/55R and T90/70R

Optional Accessories

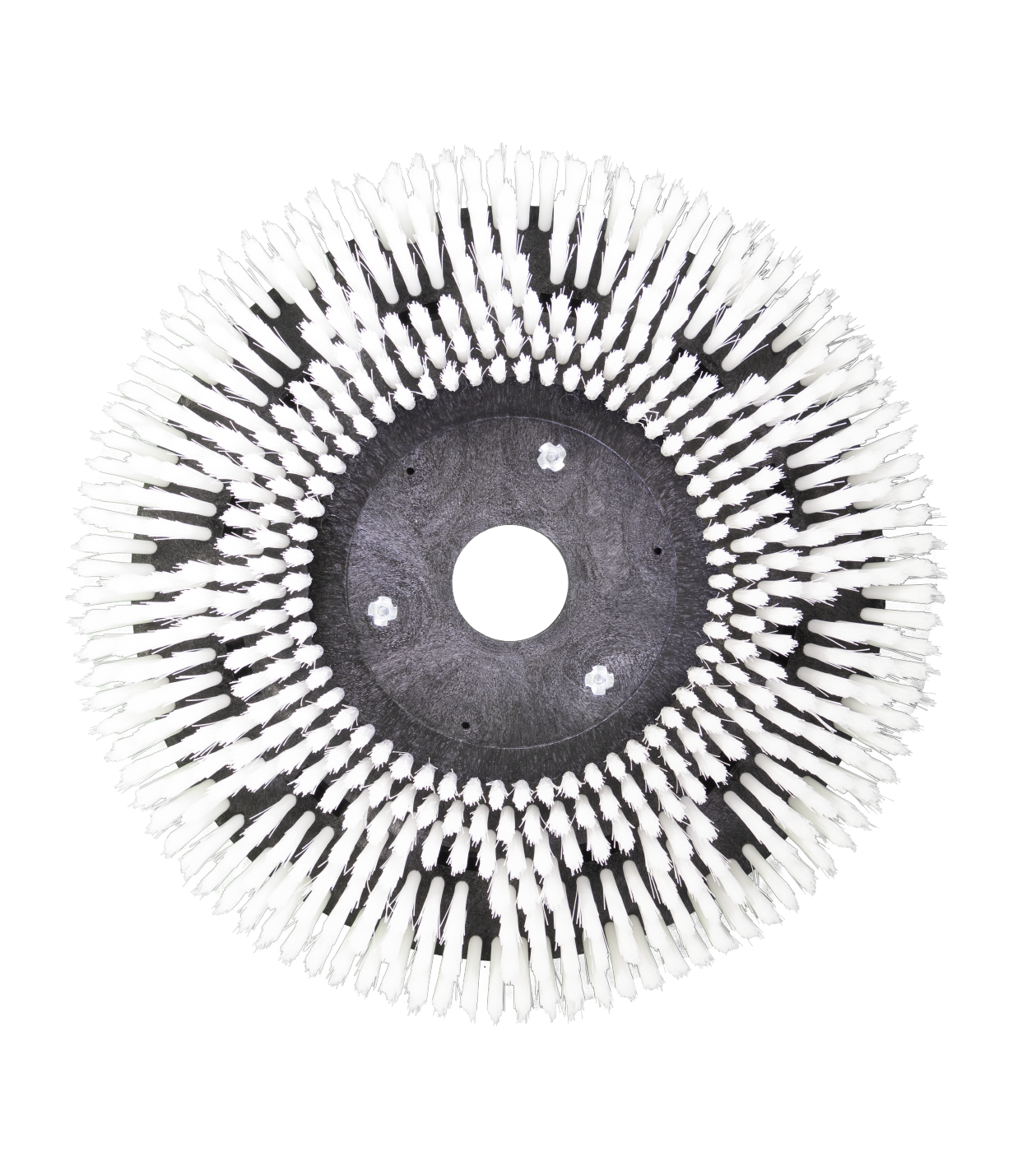

Scrubbing Brush 0.28mm
Size:

21" * 1pcs (T90/55R)

13" * 2pcs (T90/70R)

Material：

0.28mm(⌀) PP

Application: daily

cleaning and

maintenance

on most hard floors

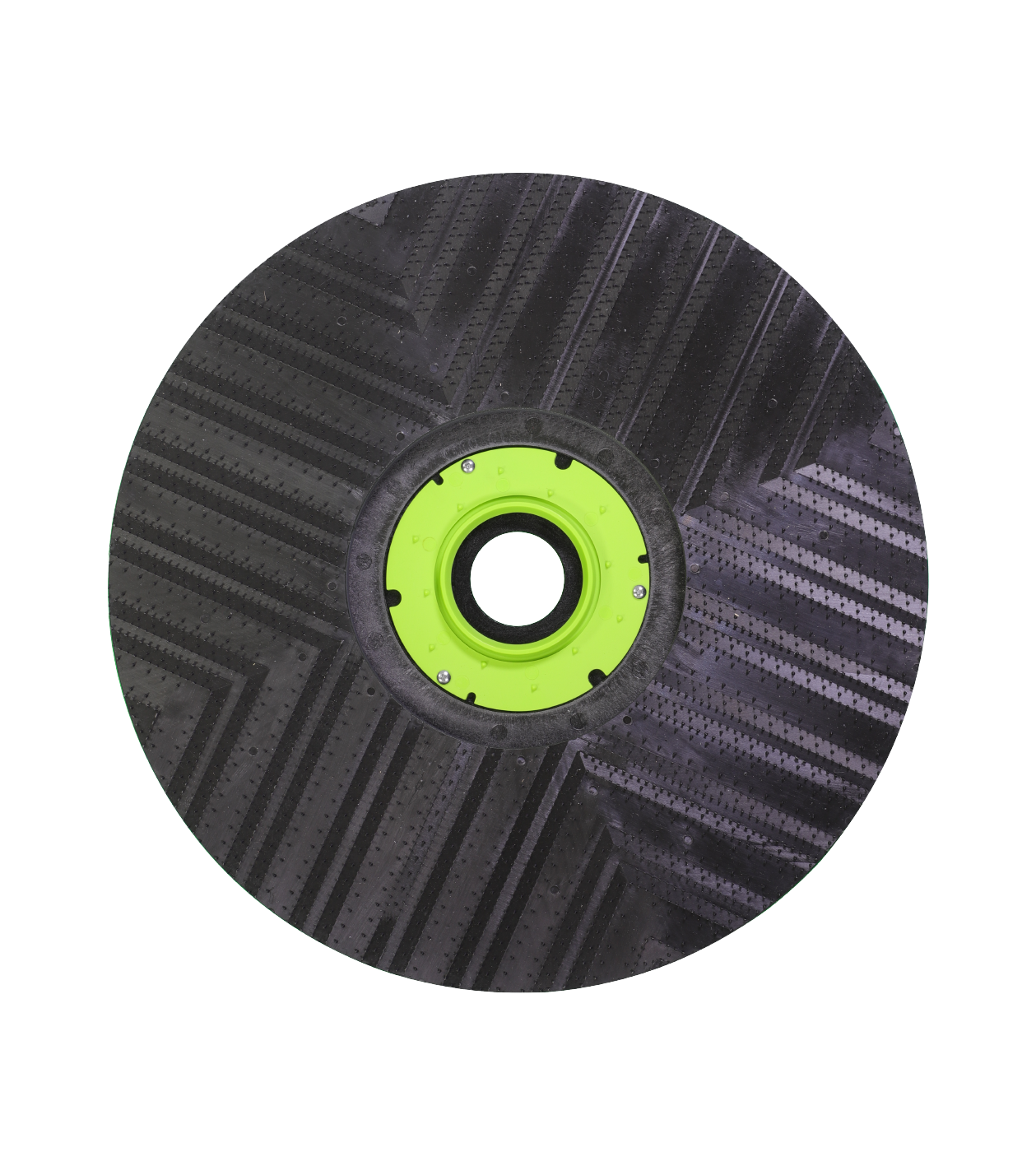

Pad Holder
Size:

21" * 1pcs (T90/55R)

13" * 2pcs (T90/70R)

Application: to hold

the floor polishing

pad

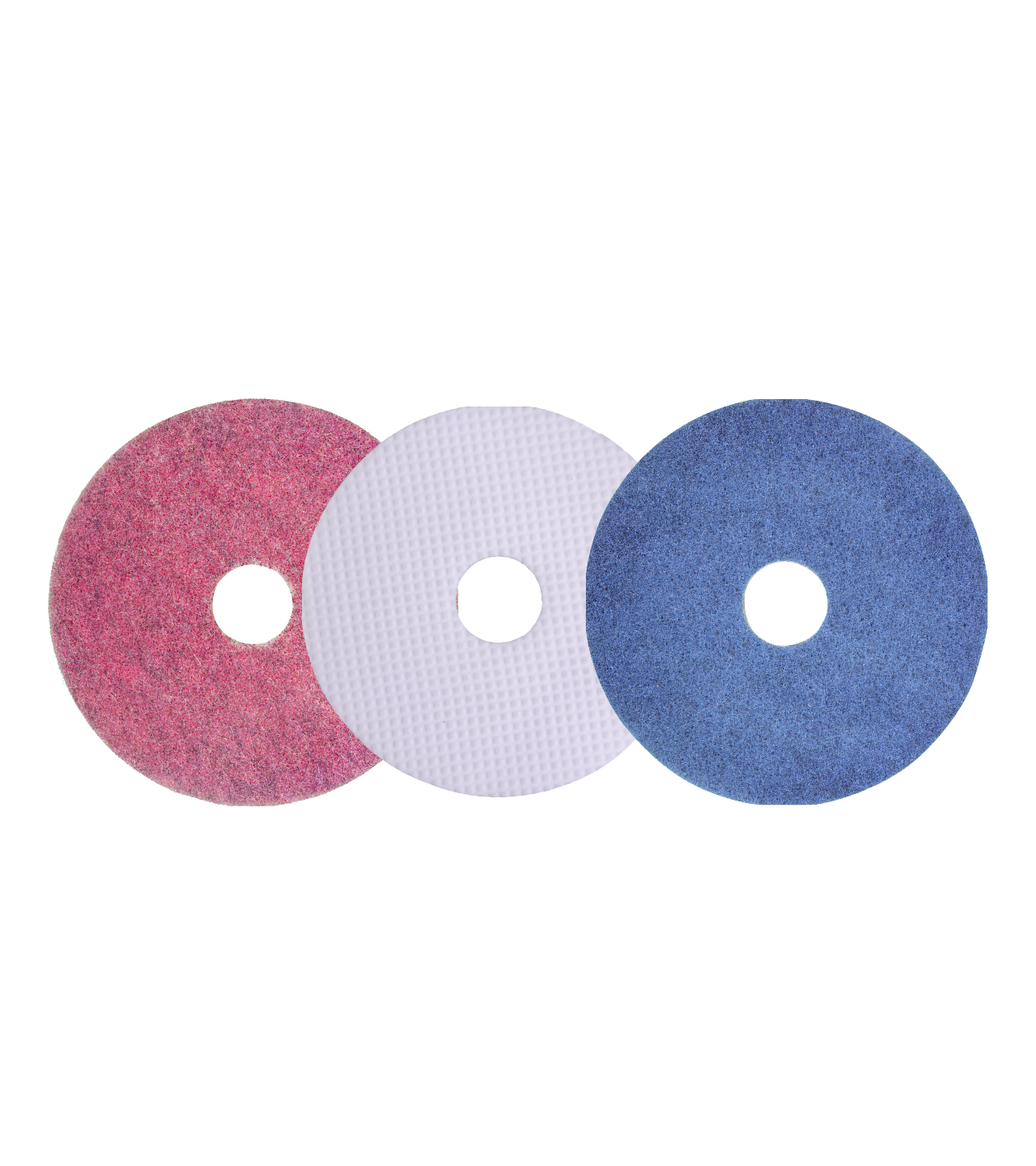

Floor Polishing Pad
Size:

21" * 1pcs (T90/55R)

13" * 2pcs（T90/70R）

Application: White

or Red for daily

cleaning, Black for

deep cleaning

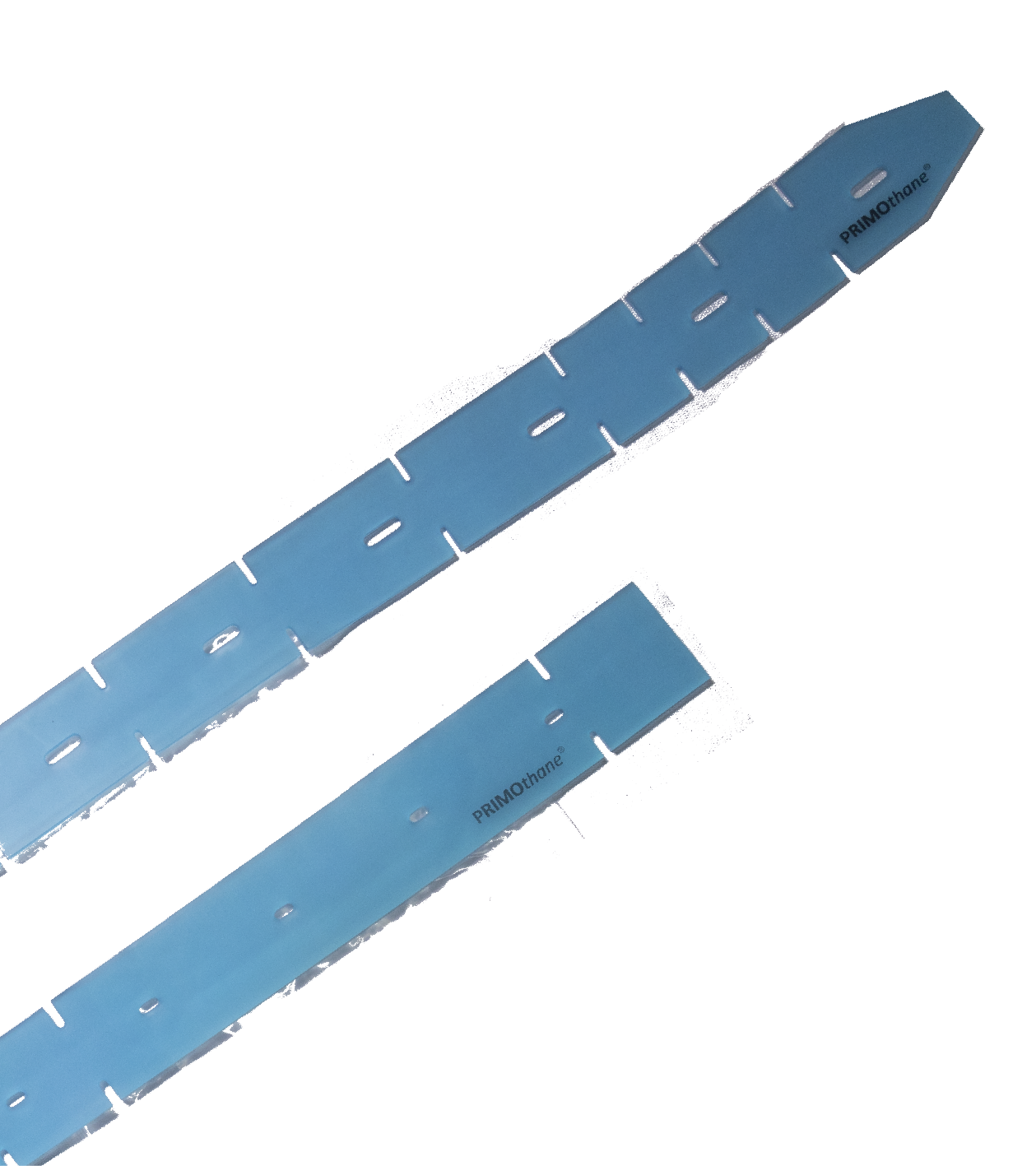

Rubber Strip
Material: 38 Shore

hardness

polyurethane

Application:

1. Resilient floor

daily cleaning

2. Deep cleaning on

heavy-oiled floor

3. Lower Noise

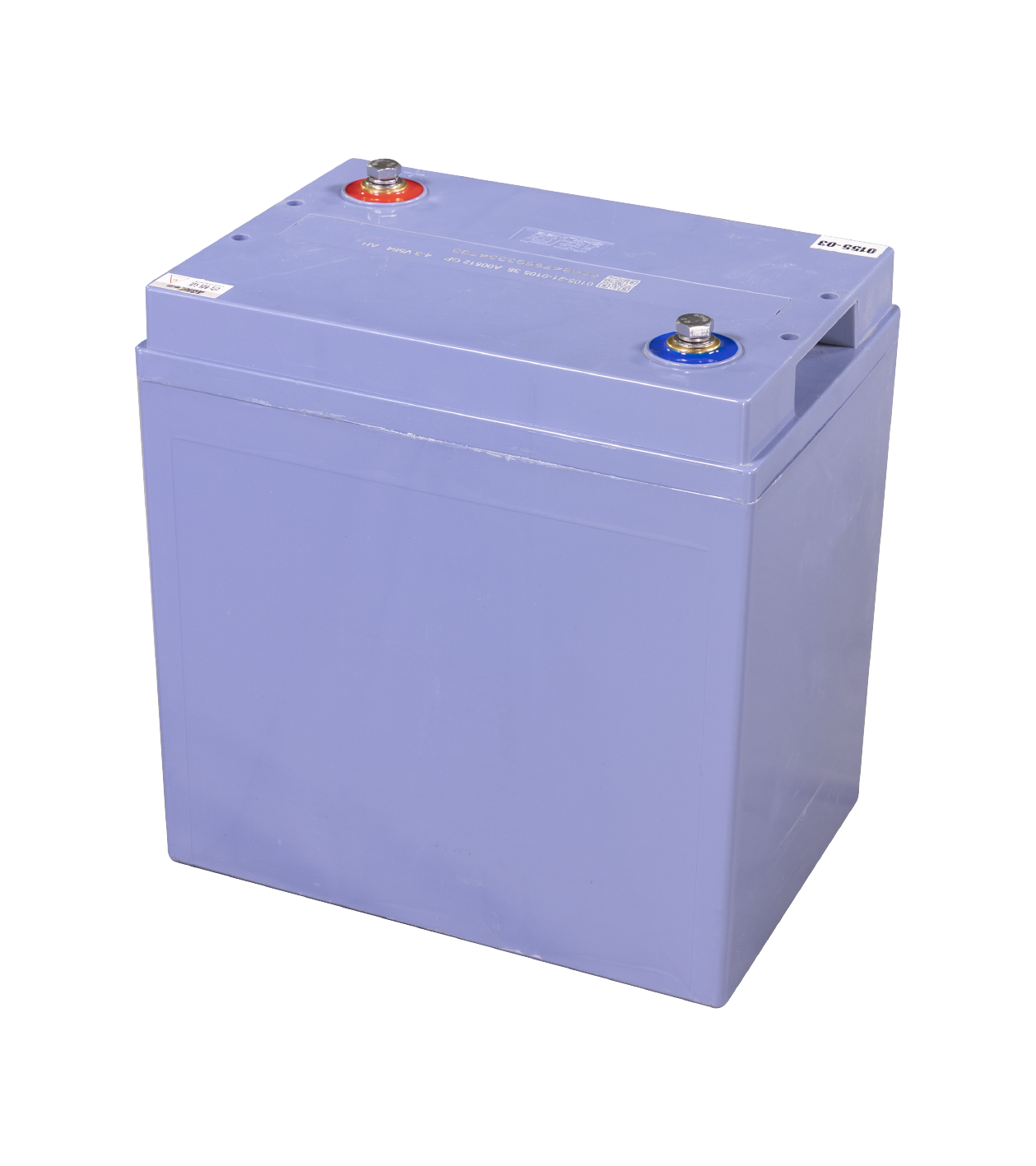

AGM Battery
AGM Battery

12V100AH * 2pcs

(T90/55R)

AGM Battery

12V120AH * 2pcs

(T90/70R)

Videos
