This blog will discuss about topic of scrubbing head and brush of the floor scrubber. By reading this blog, you will learn,

1. What’s the type of scrubbing head

2. What’s the difference between single disc and dual disc

3. How to choose the right one for your cleaning task

Disk Scrubbing Head

It consists of a brush bristle and a brush tray. The bristle is usually made of polypropylene and nylon, which have different hardness and can be adapted to different types of floor and cleaning tasks.

With heavy down pressure, it’s generally used for deep cleaning, daily cleaning and light-duty polishing. Disk scrubbing heads now are popular in supermarkets, plazas, retails, healthcare, and educational facilities since they can both clean small and large-area scenarios.

Benefits

• Heavy down pressure
• Good for deep cleaning to remove hard build-up
• Productive for large-area scenarios
• General used for various cleaning and polishing tasks
• RPM 150-300

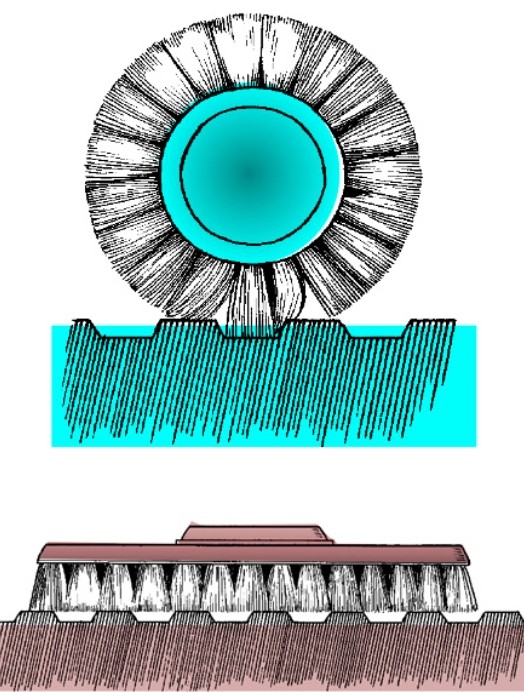

Cylindrical Scrubbing Head

It consists of a roller, bristles and a transmission system. The roller is made of aluminum alloy or polymer material, and the bristles are usually fixed to the surface of the roller. The usual RPM of the cylindrical head is 600-1500 but the down pressure is smaller than the disk scrubbing head.

The obvious strength of using cylindrical heads and brushes is they can pick up lots of debris to lower the need for pre-sweeping, which saves your labor cost, reduces the risk of clogs to the squeegees and deep cleans the cracks of the floor. However, the contact surface is smaller than the disk head. It’s ideal to use in industrial scenarios like parking lots, food factories, manufacturing, warehousing and shipping centers.

Benefits

• Pick up debris during scrubbing
• Wet sweeping and avoid dust
• Good for cleaning cracks and joints
• Fast RPM to bring good cleaning results
• RPM 600-1500

Square Orbital Scrubbing Head

The square oscillating head can clean the floor in one direction, back and forth but with a very fast oscillating speed of approximately 1000-3000 times/minute. In most cases, it will With strong oscillating power, it can easily remove hard stains, scratches, sticky dirt, and coating layers. As a chemical-free cleaning way, it can typically be used for floor stripping and renovation on resilient floors like PVC, VCT and hard floors.

Benefits

• Strong oscillating speed 1000-3000 times/minute
• Effective for floor deep stripping and renovation

Single Disk or Dual Disk

For the same walk-behind or ride-on floor scrubber dryer machine, if they are equipped with a single disk and dual disk, which one is better for you?

Before answering this question, you should know the average disk pressure on a single disk and the dual disk is different. As usual, the contact area of the single disk is bigger so its pressure is smaller than the dual disk one. So dual disk will be better for deep cleaning cases.

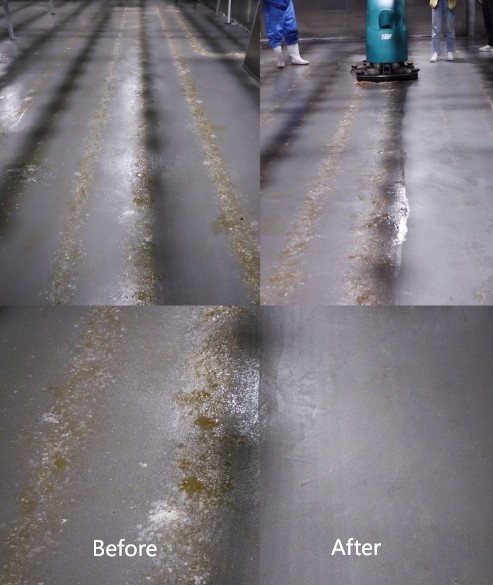

Left: Food Factory, Deep Cleaning the sticky oil residues from the floor/ TVX T70 Walk-behind Scrubber

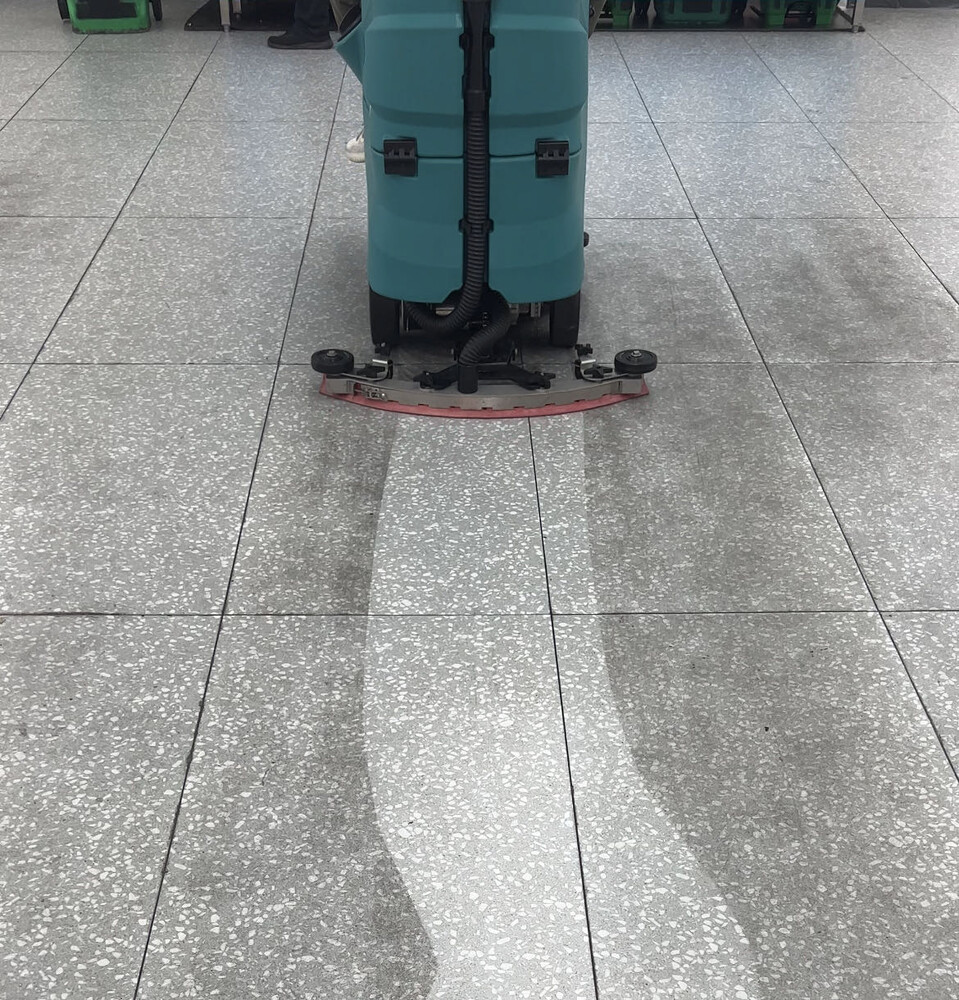

                                                         Right: Canteen, Heavy oiled stains, deep cleaning, TVX T90 Ride-on Floor Scrubber

Conclusion

The RPM, scrubbing head and disk pressure are only a part of the mechanical designs, they can’t determine the cleaning result since you have to match with the right consumables like chemicals, pads, brushes and squeegees based on your cleaning demands. It’s a total solution thing if you want to achieve the ideal cleaning result. How to choose the right consumables? Follow us to stay tuned!

If you're interested in our walk-behind floor scrubber T70 and the ride on auto floor scrubber T90 in the case, just click them to learn more about it.

(*The first two photos are cited from Google in this blog, If there is any infringement, please contact us to delete it.)
